제품 상세 정보:
|
| 재료: | 외국 그라파이트 | 사이즈: | 주문 제작됩니다 |
|---|---|---|---|
| 패키지: | 나무상자 | 시간을 전달하십시오: | 5-8 작업 일수 |
| 공항: | 칭다오 항구 | 브랜드: | JC |
| 하이 라이트: | 탄소 흑연 금형,1.85 G/Cm3 밀도 흑연 금형 |
||

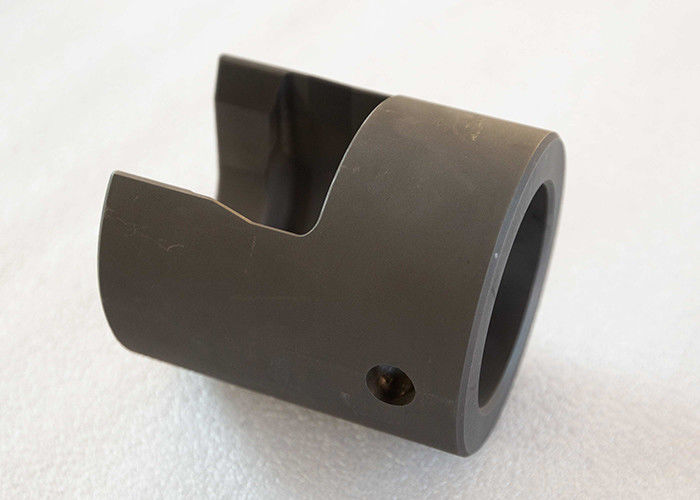

Customized High Density High Purity Carbon Graphite Moulds
Products details:
Customized High Density High Purity Carbon Graphite Moulds performance:
1. Excellent thermal conductivity and conductivity.
2. Low linear expansion coefficient, good thermal stability and thermal shock resistance.
3. Chemical resistance is not easy to react with most metals.
4. In high temperature in most of the copper base tire body sintering( temperature above 800 ºC) intensity increases with temperature rise
5. Good lubrication and abrasion resistance.
6. Easy to process, good mechanical processing performance, can be made into a complex shape, high precision mold.
Customized High Density High Purity Carbon Graphite Moulds Processing:
Processing characteristics of graphite mould
Step1: Select high-quality graphite materials according to the above requirements.
Step2: Cut the graphite material into the required size in the cutting room.
Step3: Graphite materials enter the CNC machining center for forming sculpture. Carbon CNC computer gongs need to be processed quickly and with high precision.
Step 4: After the mold is formed, the final graphite polishing can be carried out on the polishing machine, and the polishing can be completed. After three dimensional inspection of the metadetector, the product can be put into production.
High Density High Strength Graphite Dies For Copper Bar Horizontal Continuous Cast Materials:
| Property | Unit | Value |
| Bulk density | g/cm3 | 1.85 |
| Specific electrical resistivity | µΩm | 11 |
| Young's modulus (dynamic measurement) | Gpa | 10.8 |
| Flexural strength | Mpa | 49 |
| Shore hardness | 58 | |
| C.T.E | X10-6/°C | 5.5 |
| Thermal conductivity | W/mk | 116 |
| Property | Unit | Value |
| Bulk density | g/cm3 | >=1.72 |
| Specific electrical resistivity | µΩm | <=8.5 |
| Max. grain size | mm | 0.8 |
| Flexural strength | Mpa | >=13.5 |
| Compressive strength | Mpa | >=30 |
| C.E.T | X10-6 | <=2.5 |
Graphite advantages:
Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient
We can machine various types of graphite connector according to customers' designs.
Production emvironment:
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
