제품 상세 정보:
|
| 재료: | 중국 그라파이트 | 사이즈: | 주문 제작됩니다 |
|---|---|---|---|
| 패키지: | 나무상자와 진공 포장 | 시간을 전달하십시오: | 5-8 작업 일수 |
| 공항: | 칭다오 항구 | 상품 이름: | 흑연 펠트 |
| 애플리케이션: | 고온과 진공로 | Brand name: | JC |
| 하이 라이트: | 11.5 밀리미터 탄소 흑연 Felt,11.5mm 흑연은 insulation,1000g M2 탄소 흑연이 느꼈다고 느꼈습니다 |
||

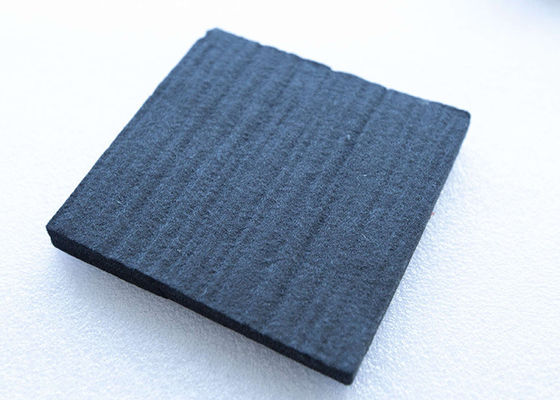

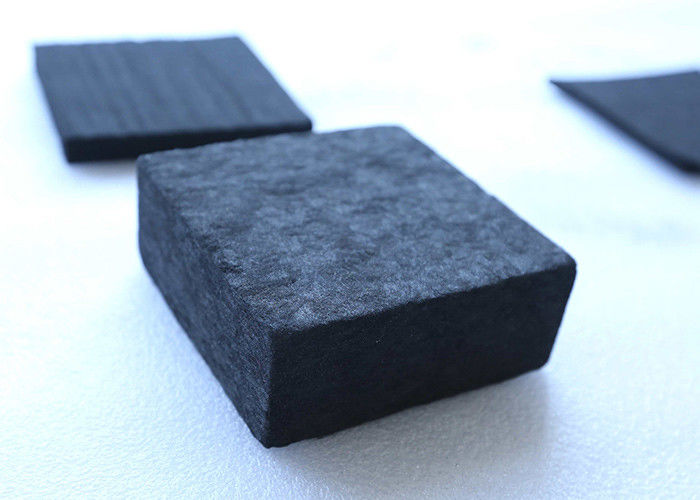

High Temp Graphite-Carbon And Graphite Soft Felt For High Temperature And Vacuum Furnaces
Product details:
The graphite felt is normally classified into asphaltic based graphite felt, PAN based graphite felt &rayon-based graphite felt. The mainly application is electric conduction in the photovoltaic industry, as the heat retaining material, thermal insulation material for the smelting furnace and vacuum furnace, and in chemical industry it could be the filtration material.
Carbon And Graphite Soft Felt For High Temperature And Vacuum Furnaces Feature:
Low ash content / High carbon content / Low gas evolution
Excellent heat insulation / Low thermal conductivity
Long life time / Good anticorrosion / High oxidation resistance
Easy Handling / Good Strength
Carbon And Graphite Soft Felt For High Temperature And Vacuum Furnaces Application:
1. Heat insulation materials
2. Electrical elements
3. Absorptive materials
4. Reinforcing structure for C/C composite components and other products .
5. Aerospace industry for adiabatic materials
6. Thermal Insulation materials for ultra high temperature vacuum metallurgy equipment and other composite maaterials .
7. It can also be used in high performance far infrared heating elements
Etc
Application:
High Temperature and Vacuum furnaces
Carbon And Graphite Soft Felt For High Temperature And Vacuum Furnaces materials:
| Typical properties | Unties | GPA5 | GFA10 |
| Thickness | mm(in) | 6(1/4) | 11.5(1/2) |
| Area weight | g/m2 | 500 | 1000 |
| Width | mm(in) | 1220(48) | 1270(50) |
| Length | m(ft) | 25-30(82-98) | 25-30(82-98) |
| Ash content | ppm | 400 | 400 |
| Ash content( purified grade) | ppm | <20 | <20 |
| Max.application temperature | °C(°F) | 2000(3600)in vacuum or inert gas | 2000(3600)in vacuum or inert gas |
Graphite advantages:
Because of the high tempearture resistance, thermal conductivity, corrosion resistance and special thermal shock resistance, graphite is widely used in metallurgy, mechanical, electrial, chemical, textile, denfense and other industries.
1. High strength. As the temperature rises, the graphite strength increases
2. High temperature resistance
3. Good heat shock resistance
4. Anti-oxidation
5. Strong corrosion resistance to acid and alkali liquid
6. Good conductivity and thermal efficiency.
7. Excellent chemical stability
8. High heat conductivity
9. Mechanical shock resistance
10. Small thermal expansion coefficient
Production environment:
Our company is the professional manufacturer and exporter for graphite products. our company was established at 2008.Our factory is located in Qingdao city. We believe that due to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
